| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x Type-C DisplayPort Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot. ** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot. |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices 4x SATA 6G * M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 1x Thunderbolt4 ports (Rear) 1x Thunderbolt4 ports (Front) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit. |
| LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Intel® Killer™ E5000B 5G LAN |
| Internal IO | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 7x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch |

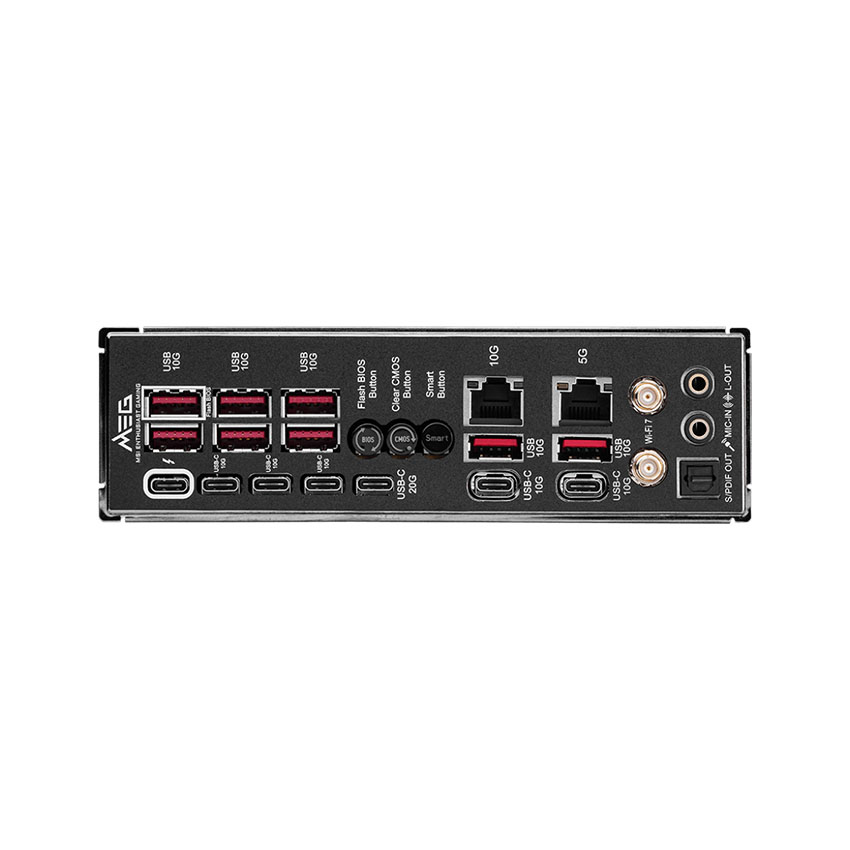

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | E-ATX 277mmx304.8mm |
