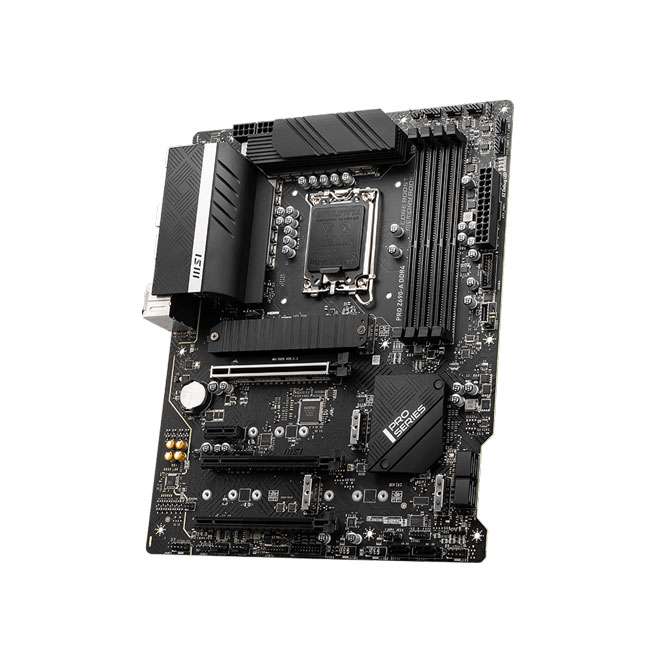

Main MSI PRO Z690-A DDR4 (Chipset Intel Z690/ Socket LGA1700/ VGA onboard/ATX)

• 4x DDR4 memory slots, support up to 128GB ¹
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5200+ MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

1x Intel^® I225-V 2.5Gbps LAN

• 3x PCIe x16 slots
  • PCI_E1 (from CPU)
    • Supports up to PCIe 5.0 x16
  • PCI_E3 & PCI_E4 (from Z690 chipset)
    • Supports up to PCIe 3.0 x4 & 3.0 x1
• 1x PCIe 3.0 x1 slot (from Z690 chipset)

• 6x SATA 6Gb/s ports (from Z690 chipset)
• 4x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from Z690 chipset)
    • Supports PCIe 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • Intel^® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset

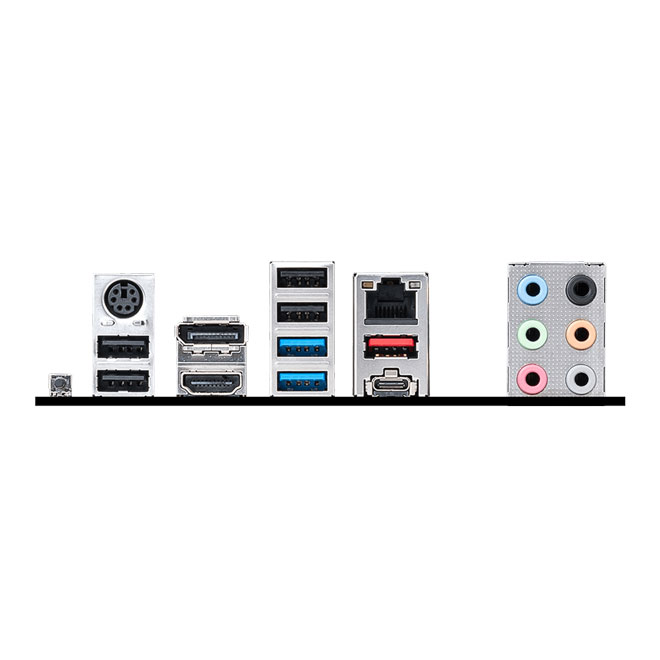

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. LAN port
5. Audio connector
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. USB 3.2 Gen 2 10Gbps Type-A

• Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 5200+(OC) MHz
• Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• Audio Boost: Reward your ears with studio grade sound quality
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
