| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |

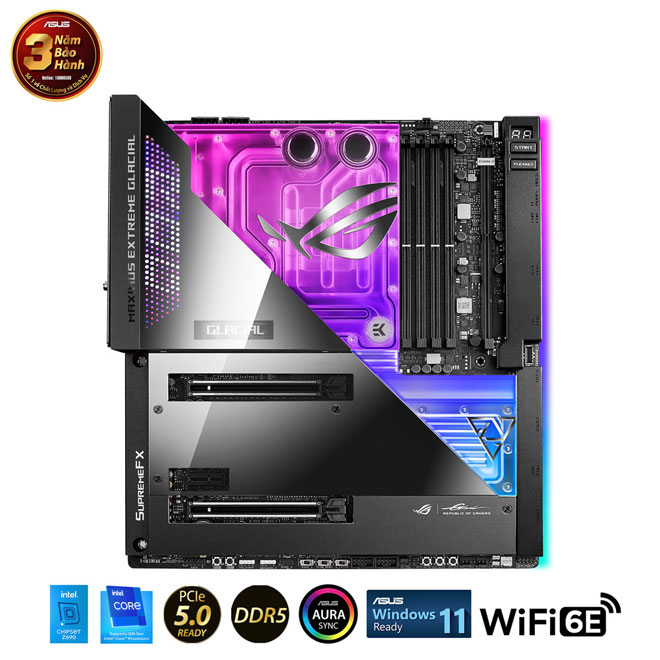

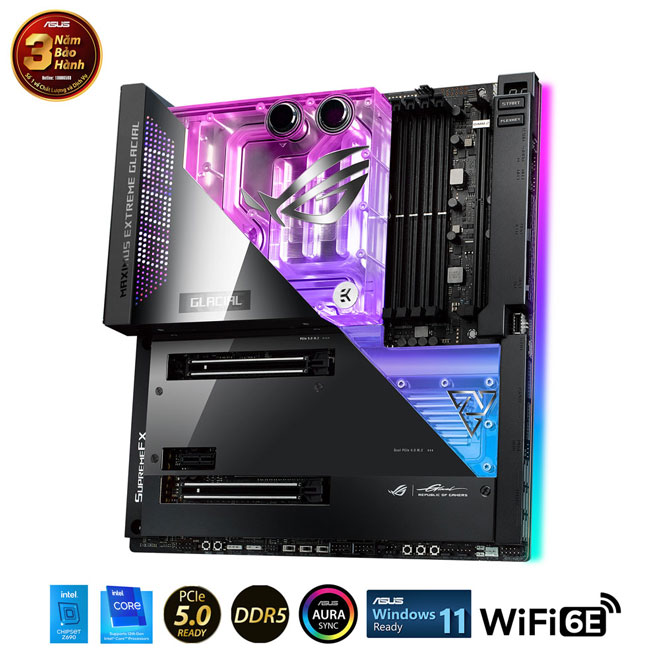

| Model | ROG MAXIMUS Z690 EXTREME GLACIAL |
| Socket | LGA1700 |
| Hỗ trợ CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel Z690 |
| Hỗ trợ RAM |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Cạc đồ họa | VGA onboard |
| Âm thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Cạc mạng |
1 x Intel® 2.5Gb Ethernet
1 x Marvell® 10Gb Ethernet
TUF LANGuard
Intel® Wi-Fi 6E
|
| Khe cắm trong |
Intel® 12th Gen Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel® Z690 Chipset*** 1 x PCIe 3.0 x1 slot Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110*** - Intel® 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M), type 2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports
|
| Cổng giao tiếp ngoài |
1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x HDMI® port 1 x ASUS Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Kích thước | EATX |
| Tính năng khác |
Intel® Z690 EATX motherboard with 24+1 power stages, Integrated EK® Ultrablock DDR5 with OptiMem III, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting |
| Phụ kiện kèm theo | Sách, đĩa, cáp SATA, … |
