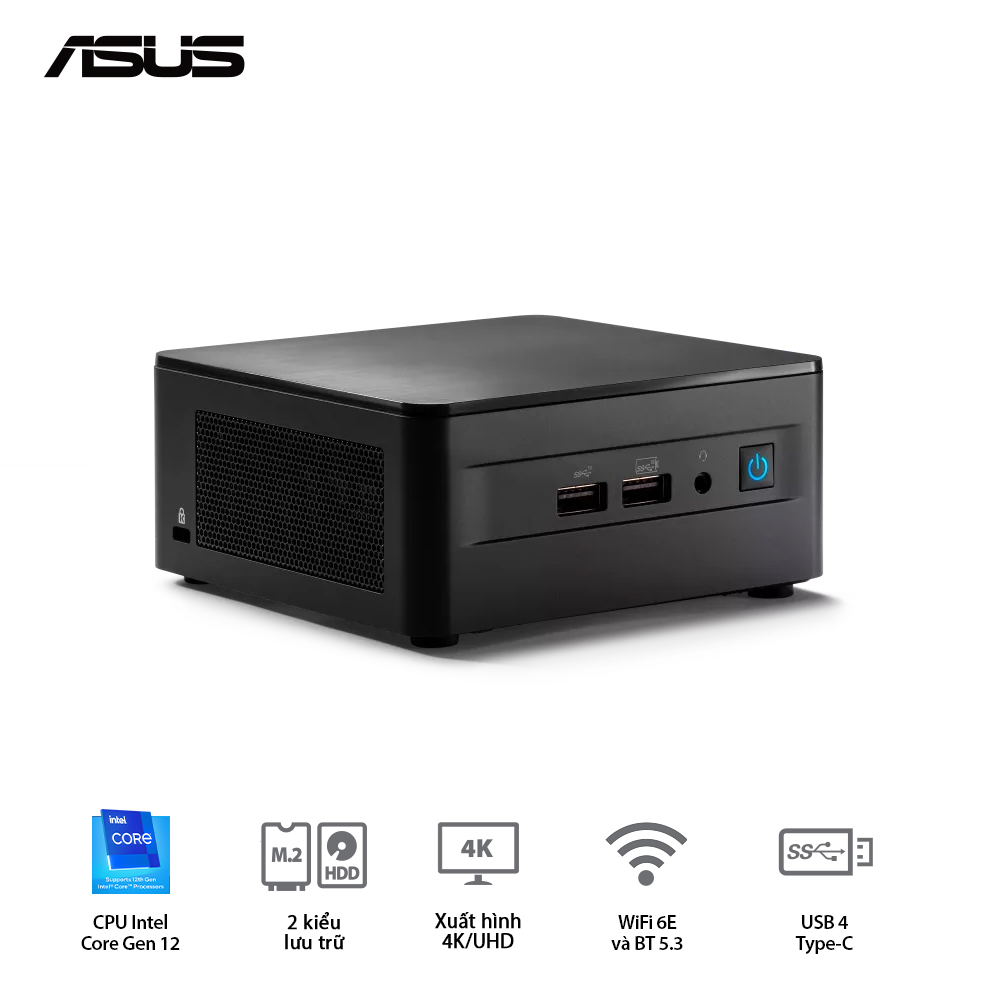

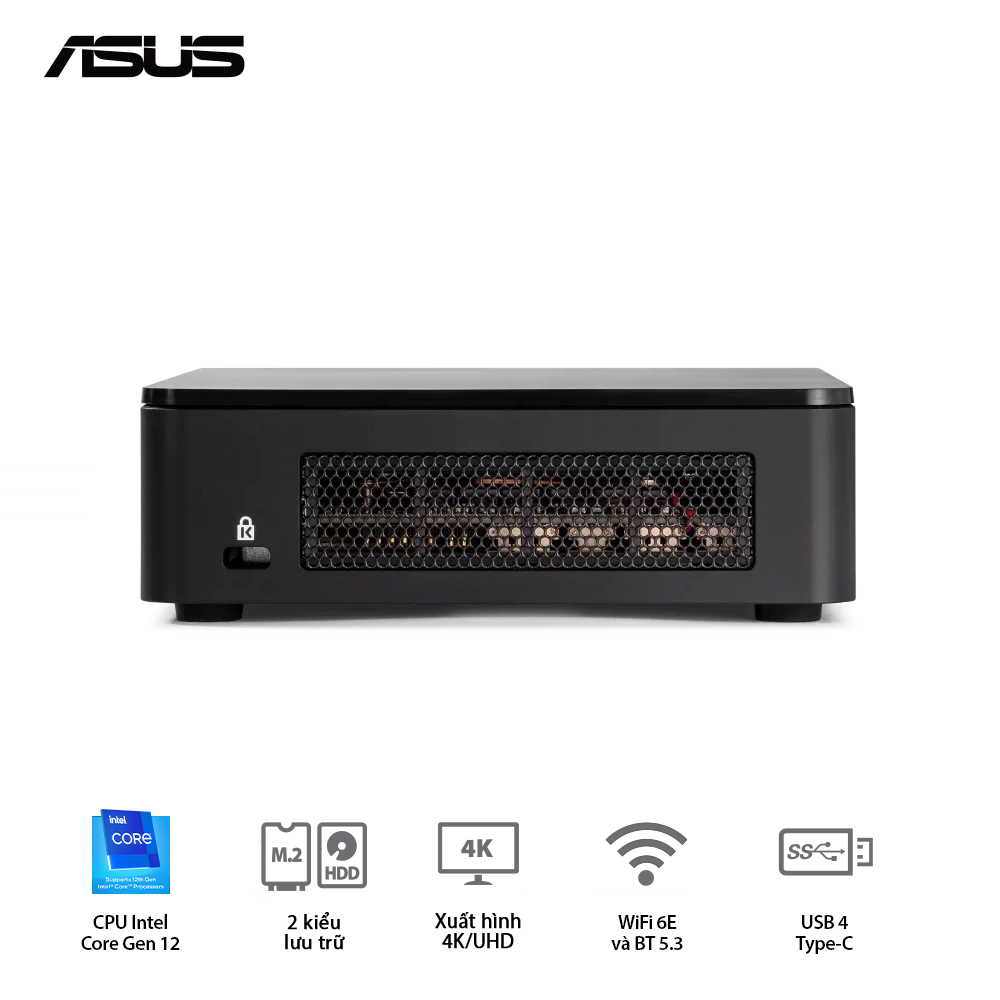

Thông số kỹ thuật chi tiết Bộ Mini PC ASUS Intel NUC12 PRO Tall NUC12WSHI7 ( i7-1260P/ 2xDDR4-3200 / 3xNVMe, SATA/ 2x HDMI 2.1/2x DP 1.4a ) 90AB2WSH-MR8100
| Model | NUC12WS |
| Marketing Name | NUC12WS(RNUC12WSHI70000) |
| Brand | Intel |
| Colour | Black |
| Form Factor | Small Form Factor |
| Screen Resolution | 3840 x 2160 |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Processor Brand | Integrated - Intel® Iris® Xe Graphics (i5/i7) |
| Processor Type | Intel® Core™ i7-1260P Processor |
| Processor Speed | 4.70 GHz |
| # of Memory Slots | 2 |
| Processor Count | 4 |
| Memory Technology | DDR4 |
| Computer Memory Type | 2 x SO-DIMM, DDR4-3200MHz |
| Maximum Memory Supported | 64 GB |
| M.2 Card Slot (storage) | 1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe™ SSD 1 x 2.5" SATA 6Gb/s, supports 4TB 7~15mm HDD 1 x M.2 2242 SATA supports 256GB~1TB SSD |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C |
| # of Displays Supported* | 4 |
| # of Thunderbolt™ Ports | 2x Thunderbolt™ 4 |
| Graphics Card Interface | Integrated |

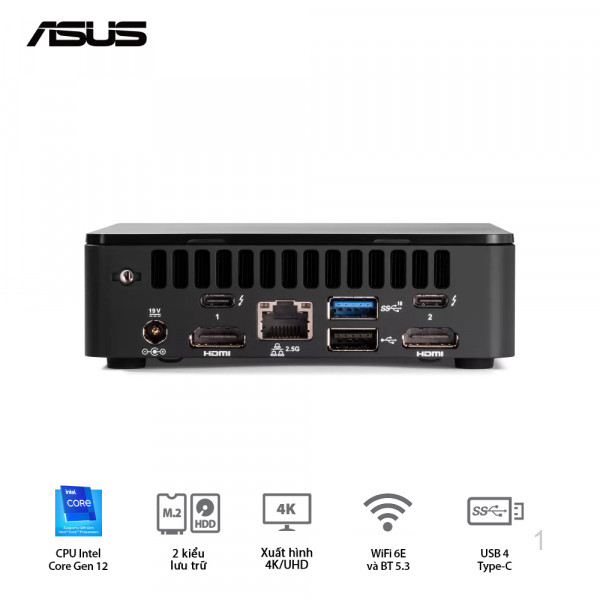

| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers) |
| Audio | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel® Ethernet Controller i225-V |
| Connectivity Type | Intel® Wi-Fi 6E AX211 (Gig+) |
| Bluetooth Version | 5.2 |
| M.2 Card Slot (wireless) | 22x30 (E) |
| Expansion Options PCIE Revision | Gen 4 (m.2 22x80 slot); |
| Expansion Options PCIE Configurations | 2xThunderbolt™ 4 (5V/3A, 40Gbps) 1xUSB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1xUSB 2.0 (5V/0.5A) 1xHDMI 2.1 (Up to 4K@60Hz) 1x2.5G RJ45 LAN 1xDC-in 1xKensington Lock slot |
| Thermal Design Power | 35W |
| Power | 120W Power Adapte |
| Hardware Platform | Windows |
| Operating System | Windows |
| Included Components | 1 Adapter, Screws, 1 NUC Main Unit, 1 User Manual, Plate |
| VESA MOUNT | YES |
| Item Weight | 1 kg 450 g |
