• 4x DDR4 memory slots, support up to 128GB
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 5200+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

1x Intel^® I225V 2.5Gbps LAN controller

Intel^® Wi-Fi 6

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.2

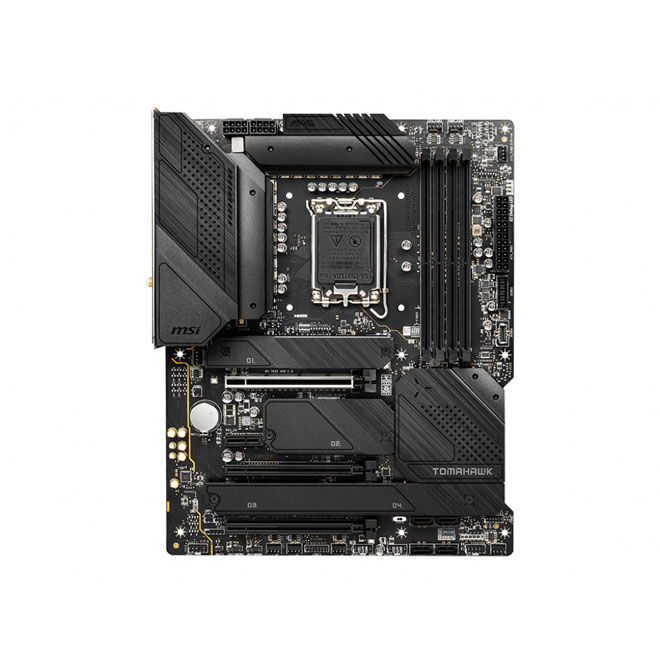

• 3x PCIe x16 slots
  • PCI_E1 (From CPU)
    • Support up to PCIe 5.0 x16
  • PCI_E3 (From Z690 chipset)
    • Support up to PCIe 3.0 x4
  • PCI_E4 (From Z690 chipset)
    • Support up to PCIe 3.0 x1
• 1x PCIe 3.0 x1 slot (From Z690 chipset)
• • 6x SATA 6Gb/s ports (From Z690 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (From Z690 chipset)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_3 slot (From Z690 chipset)
      • Supports up to PCIe 3.0 x4
      • Supports up to SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_4 slot (From Z690 chipset)
      • Supports up to PCIe 4.0 x4
      • Supports up to SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  • Intel^® Optane™ Memory Ready for M.2 slots from Z690 Chipset

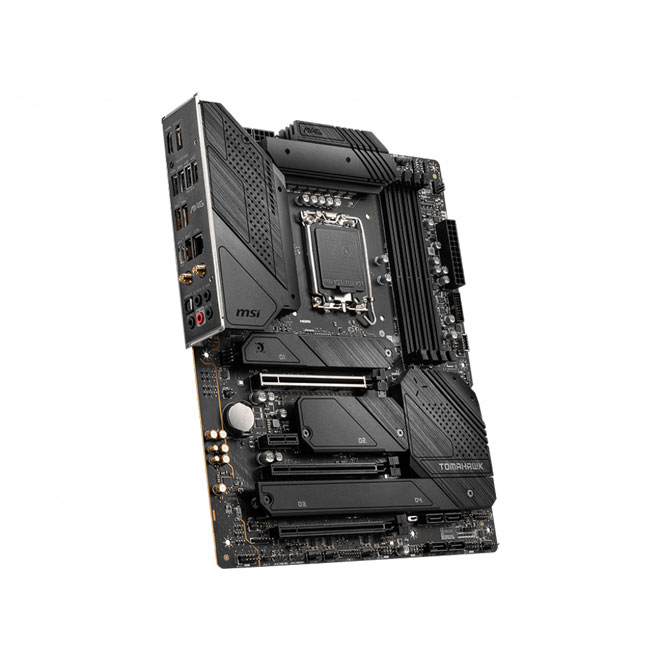

1. DisplayPort 1.4
2. USB 2.0 Port
3. USB 3.2 Gen 2 10Gbps Type-A
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. HDMI 2.1 Port
8. Flash BIOS Button
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2 10Gbps Type-A
11. USB 3.2 Gen 2x2 20Gbps Type-C
12. Optical S/PDIF OUT

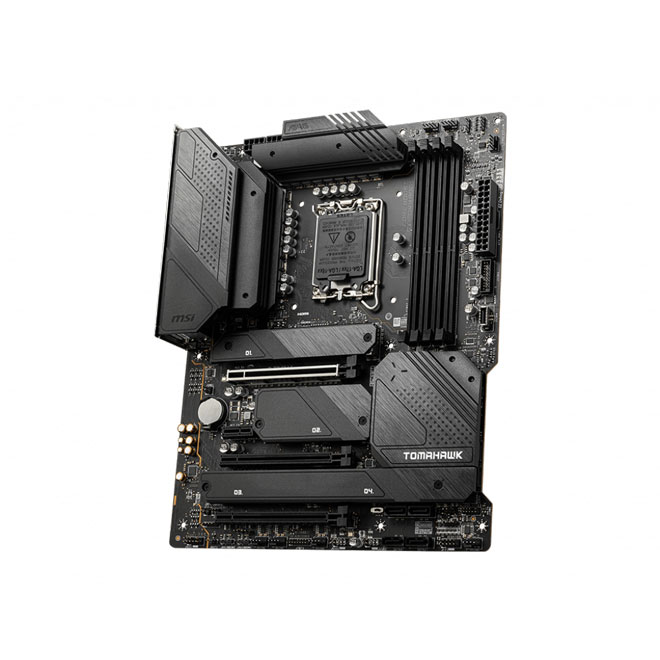

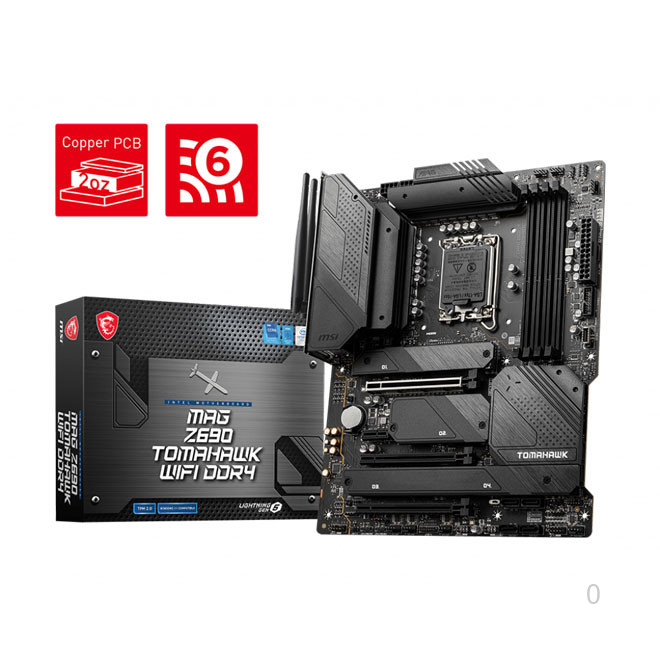

• Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 5200(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
